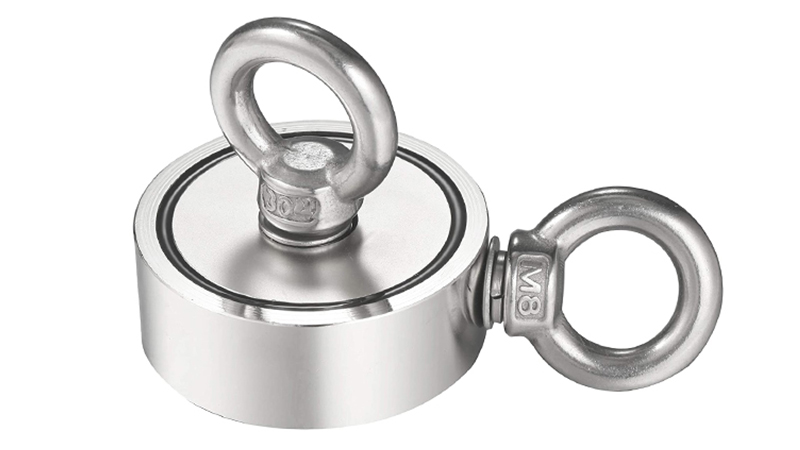

Double sided fishing magnet is also called two sided powerful Neodymium salvage fishing magnet, specially designed for heavy-duty and underwater magnetic fishing. The super strong magnetic force on both top and bottom dual sides avoids your worry about the magnet direction oriented under water, because both sides can attract ferromagnetic objects.
Doubling possibilities
Durable and safe
More versatility
Easy to use

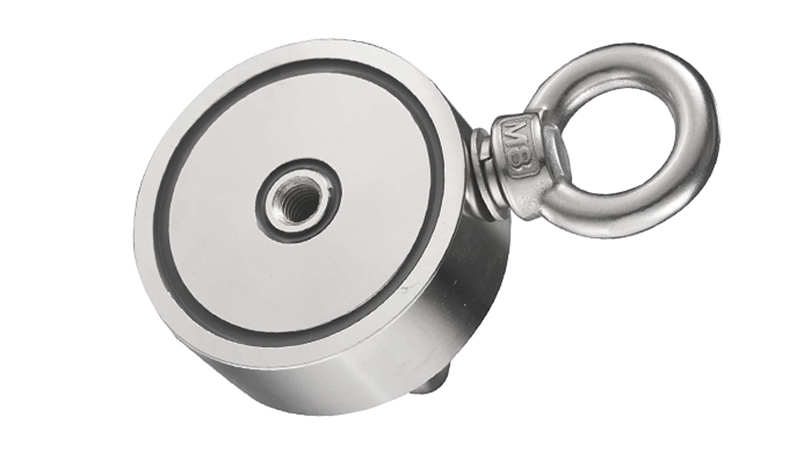

The two indispensable eye bolts on center and side of the steel casing allow wide application like magnet fishing, hanging, lifting and retrieving for various iron-contained articles.
Features for Double Sided Fishing Magnet:
1. Powerful pulling force: This magnetic system uses super strong magnet material, sintered NdFeB / Neodymium rare earth magnet. Moreover, the special steel cup concentrates the powerful force on the center of both sides.
2. Double magnet sides: The same size of fishing magnet generates twice magnet area on both top and bottom sides. And then you don’t need to care the finishing magnet direction under water, which is easy for you to use it.
3. Multi-use: The unique design with two removable eyebolts and two threaded holes respectively in the center and side cup enables both single sided and double sided application. You can screw the eyebolt into the side hole as double sided fishing magnet to trawl the bottom of the river, lakes, ponds, reservoirs or sea for ferrous metal objects. When you screw the eyebolt into the center through hole as single sided fishing magnet, which provides a stronger holding force because you perpendicularly to the targeted objects, and it is suitable for lifting from the wells, bridges, boats, etc.
4. Durable and safe: The steel cup protects Neodymium magnet from chipping and cracking, which extends the service time of the fishing magnet. Moreover, the steel cup makes you easy to use it and reduces danger risk of only strong NdFeB magnet caused to you.
5. Shiny appearance: Fine surface machining and perfect three layer of Nickel-Copper-Nickel coating on both NdFeB magnet and steel casing makes finish magnet with shiny appearance and antirust property. Eye catching! Beautiful!
6. Easy to use: Just throw the fishing into the water, and then lift or trawl, and then twist the captured objects from the fishing magnet.
Reason for Choosing Double Sided Fishing Magnet:
1. Doubling possibilities: The same pulling force on two sides, which doubles the attraction magnetic surface areas and then ability to find something.
2. Combined force: It has the same dimension as single fishing magnet, but has double stronger pulling force in total.
3. More versatility: One double sided fishing magnet can generate fishing results of both types of fishing magnets: drag it behind a boat in water, or sink and pull same as the single sided magnet.
4. Rocky water: If one side gets buried or stuck, the other magnetic side can still work.
Why to Buy Double Sided Fishing Magnet from Horizon Magnetics instead of Competitors:
1. High quality: NdFeB magnet, the most important component is produced by our own factory, which enables us to make magnet quality under control.
2. Cost effective: We design and manufacture the important component, NdFeB magnet by ourselves. It makes us ensure our fishing magnet with same quality but at lower price compared to competitors’.
3. R&D and expertise in magnetics: Our over 20-year background of magnetics enables us to optimize the steel cup and magnetic circuit to increase the pulling force but with smaller size, weight and then lower cost.

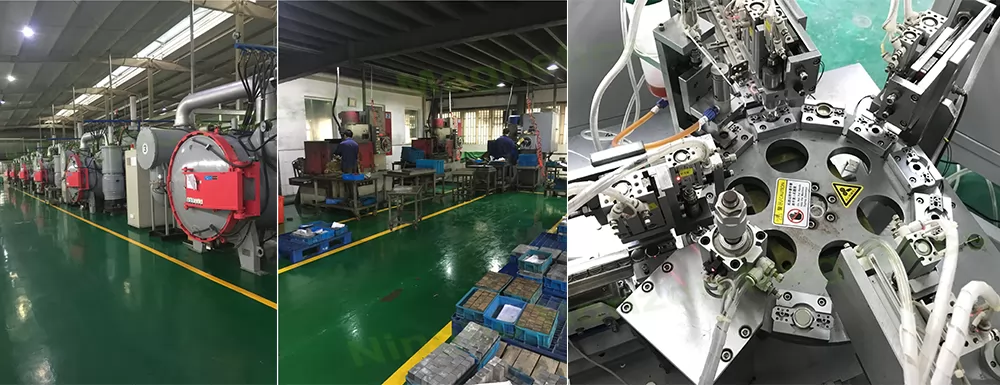

4. Short delivery time: In-house production and machining capacity ensures short delivery time and even just-in-time delivery for some fishing magnets.
5. Good terms of payment: Due to confidence in our fishing magnet quality, we allow long-term customers payment after shipment or receipt of products.
6. One-stop purchase: More standard options available, like 500 pound fishing magnet, 500kg magnet fishing, 80kg / 176lbs, 120kg / 264lbs, 150kg / 330lbs, 200kg / 440lbs, 300kg / 660lbs, 400kg / 880lbs and 600kg / 1320lbs. Moreover, our in-house production and fabrication enables customized options for customers conveniently. We can meet your simple one-stop purchase.
7. Complete package: The complete fishing package is available including grappling hook, high strength Nylon rope with carabiner, non-slip rubber gloves, one set packing, etc. It will make you an easy B2C online sale like on Amazon directly.

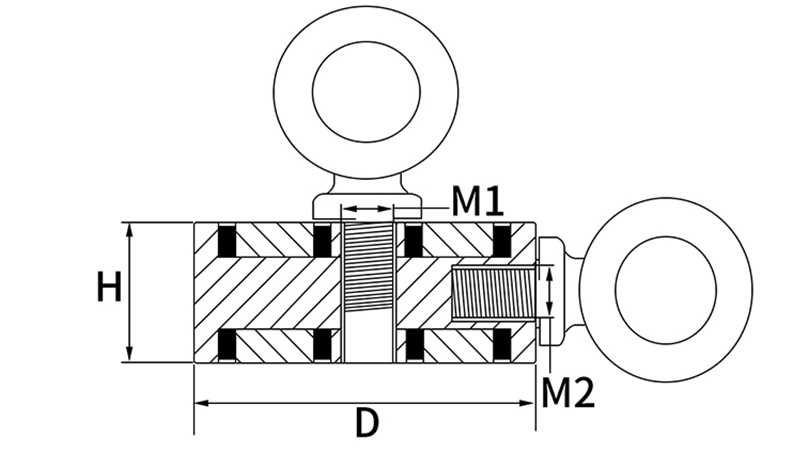

Technical Data for Double Sided Fishing Magnet:
Part Number | D | H | M1 / M2 | Force | Net Weight | Maximum Operating Temperature | ||
mm | mm | mm | kg | lbs | g | °C | °F | |
HM-FD-48 | 48 | 18 | 8 | 80 | 176 | 310 | 80 | 176 |
HM-FD-60 | 60 | 22 | 8 | 120 | 264 | 530 | 80 | 176 |
HM-FD-67 | 67 | 25 | 10 | 150 | 330 | 840 | 80 | 176 |
HM-FD-75 | 75 | 25 | 10 | 200 | 440 | 965 | 80 | 176 |
HM-FD-94 | 94 | 28 | 10 | 300 | 660 | 1600 | 80 | 176 |
HM-FD-116 | 116 | 32 | 12 | 400 | 880 | 2750 | 80 | 176 |
HM-FD-136 | 136 | 34 | 12 | 600 | 1320 | 3930 | 80 | 176 |
