Magnetic Hooks · 12–55 kg
Grip steel by hand, leave no hole, and move the hook when the layout changes.
These are magnetic hooks: a neodymium pot magnet with a steel hook screwed into the cup.
Three body styles cover most orders, from a cruise cabin wall to a 55 kg workshop pull.
Get a Quote
A magnetic hook holds by contact, so the surface decides the result as much as the magnet does.
On a clean 5 mm steel plate the hook reaches its rated vertical pull. The moment the load is hung sideways, that figure drops to about a third, because the magnet resists sliding far less than it resists lifting.
On a painted ship bulkhead, a fridge door or a powder-coated rack, expect 50–70 % of the bare steel figure. The coating is an air gap, and an air gap is the enemy.

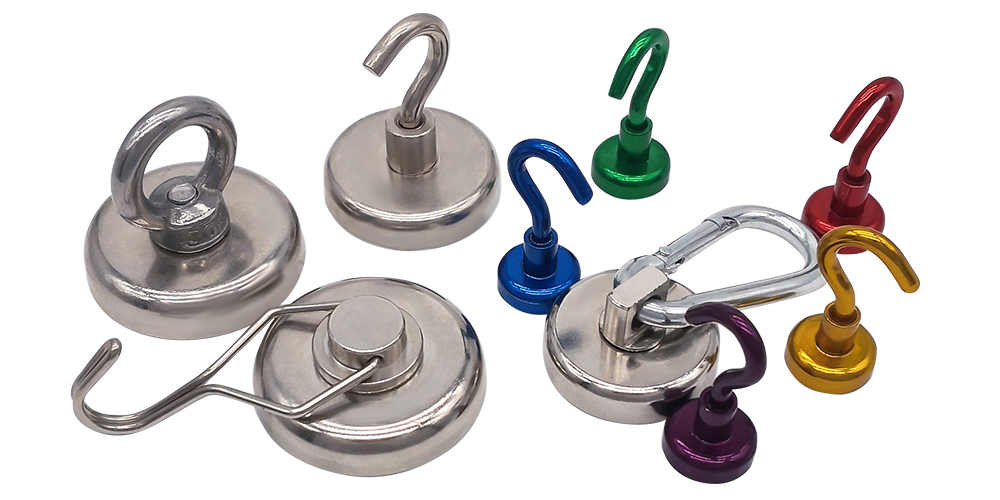

Same magnet cup, different hook and body. Pick by load direction and by how often it moves.

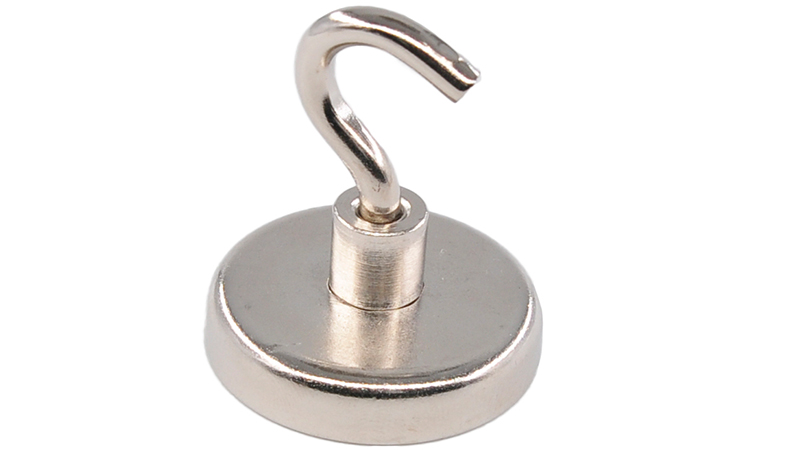

A fixed hook sits on top of the cup. The simplest body, with nothing to rotate or wear.
The hook turns in the cup, so a hanging load always settles vertical. Suits cables and lanyards that swing.
A larger D48 cup with a thicker hook shank, built for workshop loads rather than cabin walls.
Not sure which body fits? The pot magnet range lists the same cups without a hook, which is often the cheaper route if you already have a hook.
Vertical pull on 5 mm ground steel. Side slide is roughly one third of these figures.
| Cup diameter | Vertical pull | Side slide | Hook opening | Typical load |
|---|---|---|---|---|
| D25 | 12 kg | 4 kg | 10 mm | Keys, small bags, cables |
| D32 | 22 kg | 7 kg | 12 mm | Towels, jackets, tools |
| D36 | 29 kg | 10 kg | 14 mm | Most cruise and home use |
| D42 | 40 kg | 13 kg | 16 mm | Heavy bags, hoses |
| D48 | 55 kg | 18 kg | 20 mm | Workshop tools, tarps |
These are holding figures, not lifting ratings. Never use a magnetic hook above a person or as a fall-arrest point.
Four settings account for most of the volume we ship.
Cabin walls are steel and drilling is forbidden, which is why magnetic hooks for cruise cabins outsell every other fixing. A D36 hook carries a wet jacket without a mark.
Industrial magnetic hooks hang spanners, hoses and jigs on a steel rack and move when the bay is reorganized.
Swap the bare cup for a rubber coated magnet body so the paint stays intact.
Mark bays and hang signage on steel shelving without adhesive that fails in the cold.
Check the actual figure before you specify: the magnetic pull force calculator accounts for plate thickness and gap.
Share surface, load weight and whether it hangs vertically. We reply with cup size and hook style.
