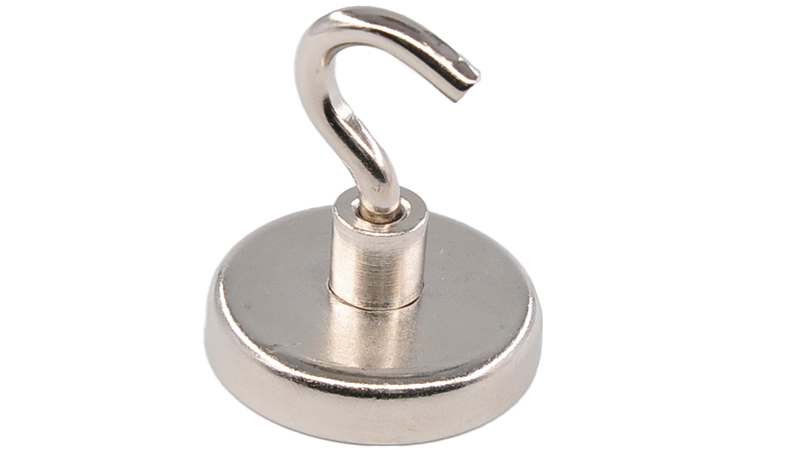

E Type pot magnet hook is a kind of Neodymium pot magnet with a threaded hook screwed into the round base with female thread. This open hook pot magnet or magnetic hanger allows for convenient hanging and suspension of objects from magnetic surfaces, and has become the most popular type of Neodymium magnetic hook ideal for a general-purpose use.
Super strong
Versatile use
Free combination
No bolt, drilling or adhesive
Details of E Type Pot Magnet Hook:
1. Structural design: The product body is composed of a high-strength magnet base and stainless steel hook. The magnet base is a flat circular shape with a thickness of only 1.5cm around, and the surface does not protrude. Detachable 304 stainless steel hook with load-bearing ring design is not easily deformed. The hook head has an opening and an inner curved arc to prevent slipping, ensuring the stability of the item and suitable for use in most scenarios,
2. Material and process: Neodymium Iron Boron permanent magnet is used to provide stable and super strong adsorption force. The magnet, iron shell, and hook are protected with three layers of Nickel Copper Nickel coating. The entire product is corrosion-resistant, anti-oxidation, and suitable for extreme environments ranging from -50 ℃ to 200 ℃. The surface has been specially treated to comply with RoHS standards, ensuring safe use.
Why Choose E Type Pot Magnet Hook:

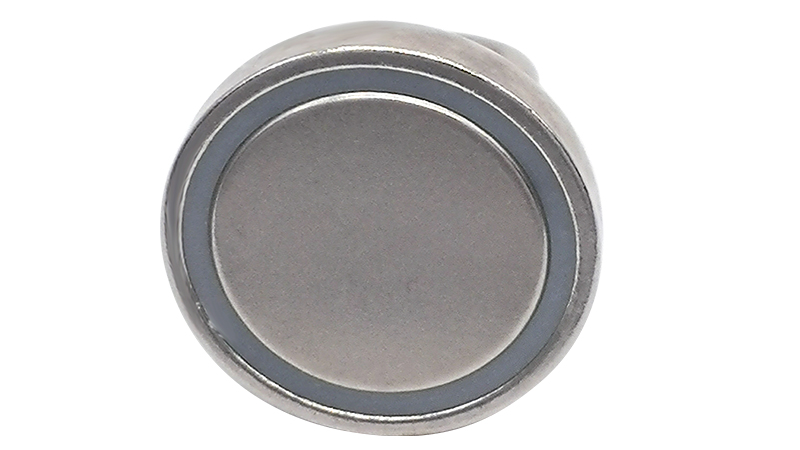

1. Super strong force: The steel cup from the Neodymium pot magnet with hook concentrates the magnetic force and directs it to the contact surface. And then it generates a stronger vertical magnetic pulling force, especially on a flat iron or steel surface.
2. Cost saving: Replace traditional hooks, tapes, and ropes and a single pot magnet hook can meet multiple needs.
3. Extremely durable: All steel cup, hook and Neodymium magnets are plated with triple layers of NiCuNi to increase corrosion resistance for the surface of Neodymium magnetic hook and then improve quality and extend the service time.
4. Environmentally friendly: Zero drilling installation protects the integrity of the wall, especially suitable for cultural heritage buildings, renters, and users who value home aesthetics.
5. Superior versatility: It can be used indoors and outdoors, such as the kitchen, bathroom, bedroom, garage, office, school, locker, refrigerator or even a cruise.
6. Free combination: Develop new applications with accessories (such as S-hooks and clips).
Advantages of Horizon Magnetics Neodymium E Type Pot Magnet Hook over Competitors:
1. Quality First: genuine Neodymium magnet and good NiCuNi coating to ensure perfect appearance and extend service time
2. Actual quality same as what is stated in the technical data, rather than lower standard
3. More options of size, hook type and other magnetic assemblies to meet one-stop shopping
4. Standard sizes in stock and available for immediately delivery

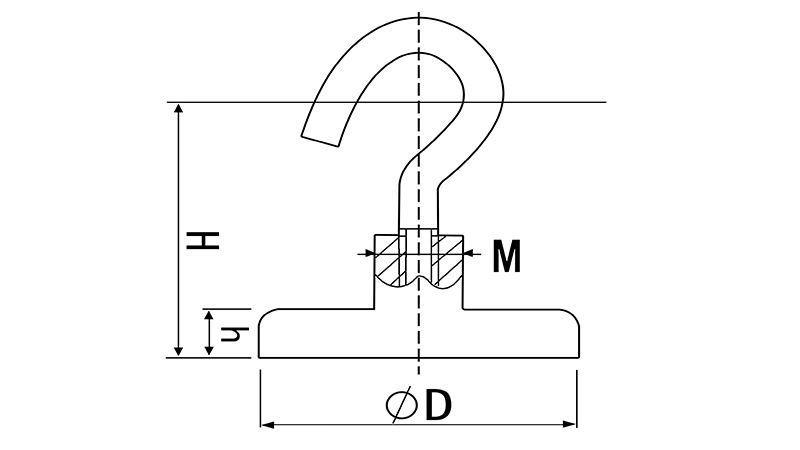

Technical Data for E Type Pot Magnet Hook:
| Part Number |
D (mm) |
M (mm) |
H (mm) |
h (mm) |
Force (kg) |
Net Weight (g) |
Maximum Operating Temperature (°C) |
||
| mm | mm | mm | mm | kg | lbs | g | °C | °F | |
| HM-E16 | 16 | 4 | 13 | 5 | 7.5 | 16 | 11 | 80 | 176 |
| HM-E20 | 20 | 4 | 15 | 7 | 15 | 33 | 21 | 80 | 176 |
| HM-E25 | 25 | 4 | 17 | 8 | 25 | 55 | 37 | 80 | 176 |
| HM-E32 | 32 | 4 | 18 | 8 | 38 | 83 | 56 | 80 | 176 |
| HM-E36 | 36 | 5 | 18 | 8 | 43 | 94 | 68 | 80 | 176 |
| HM-E42 | 42 | 5 | 20 | 9 | 66 | 145 | 97 | 80 | 176 |
| HM-E48 | 48 | 8 | 24 | 11.5 | 88 | 194 | 154 | 80 | 176 |
| HM-E60 | 60 | 8 | 30 | 15 | 112 | 246 | 282 | 80 | 176 |
| HM-E75 | 75 | 8 | 33 | 18 | 162 | 357 | 560 | 80 | 176 |
