Magnetic Steel Chamfer

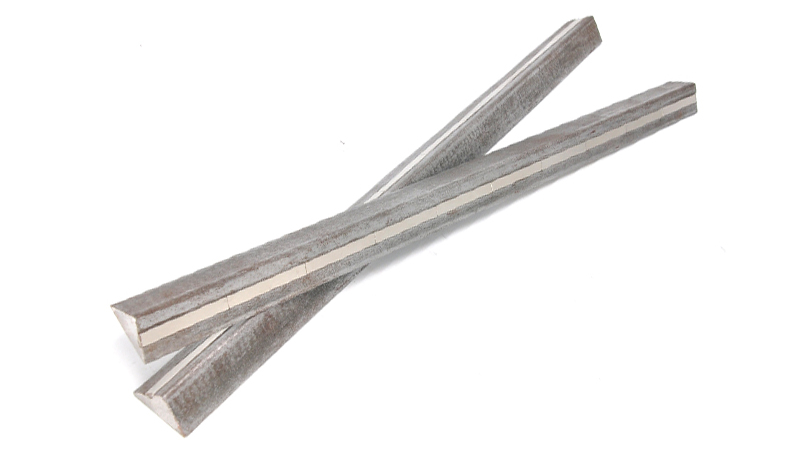

Structure of Magnetic Steel Chamfer:

It is made of high-quality steel with embedded strong Neodymium block magnets, which at the surface of the magnetic chamfer ensure fast and accurate placement of the steel triangle chamfer in steel formwork construction without slipping or sliding. The magnetic steel chamfer is isosceles right triangle shaped and can be delivered in several different sizes with magnets on single side, double sides or the hypotenuse along the full 100% length or just along 50% of the length.

Features of Magnetic Steel Chamfer:

1. Easy to operate

2. Quick to position, remove and clean

3. Reusable and durable to minimize investment shared in long term

4. No screws, bolts, welding or electricity necessary to fasten the magnetic chamfer.

5. Universal with most precast concrete systems to reduce quantity purchase and cost for different systems

6. Excellent quality result on the concrete panels due to much of the building finish problems eliminated

7. Much stronger adhesive force and longer service life than the rubber chamfer

Advantages of Horizon Magnetic Steel Chamfer over Competitors:

1. Experienced. In fact, the construction market is too small compared to all Neodymium magnet markets, and Neodymium magnet needed is also too small to extensive construction accessories. Almost none of the magnet suppliers have interest or knowledge in the application of magnet in the construction market. We focus our assembly attention on developing and manufacturing Neodymium magnet assemblies for the construction industry, especially the precast concrete industry. We quite understand what quality factors of the magnetic steel chamfer important to customers. Thanks to being used by many customers, some of our magnetic chamfers have been recognized as the standard design or size in the precast concrete industry.

2. Quality first. Confident in quality and to accept terms of payment like 100% T/T after customers’ receipt of our magnetic steel triangle chamfers.

3. Unbeatable know-how in the most important component, Neodymium magnet to ensure magnetic steel chamfer quality, because we are originating from and still in Neodymium magnet manufacturing.

4. More sizes available to save tooling cost and then product price for customers.

5. Standard sizes in stock and available for immediately delivery.

6. Custom-made solutions including triangular magnetic chamfers and trapezoidal magnetic reveals available upon request.

7. One-stop supply of various magnetic products for the precast concrete industry because of professional capabilities in producing Neodymium magnets, fabricating metals or plastics, assembling, etc.

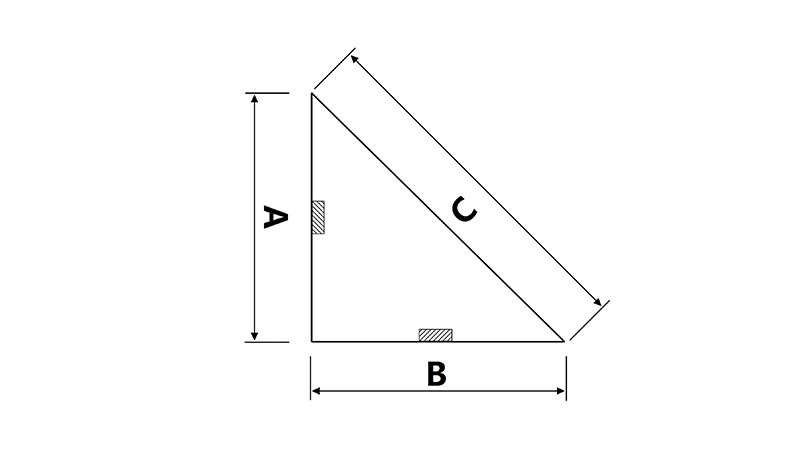

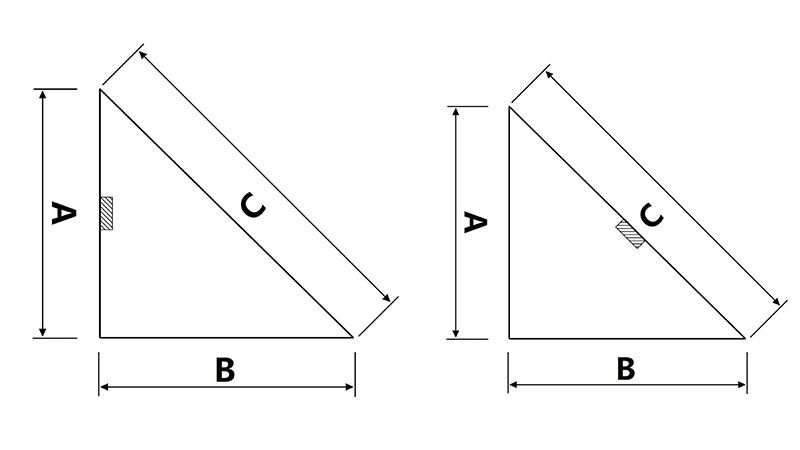

Technical Data for Horizon Magnetics Popular Models of Magnetic Steel Chamfer:

Why Precast Plants Need Magnetic Steel Chamfer:

1. Chamfered edges produced by the magnetic steel chamfer have an excellent appearance.

2. The chamfered edges of the precast concrete elements are more difficult to chip than sharp edges.

3. It’s worth investment because it is reusable and makes operation efficient.

How to Produce Magnetic Steel Chamfer:

1. Machine a steel chamfer from the steel and the plain surface should be ensured during the machining process.

2. Machine a groove in the triangular steel chamfer and the size and depth of the groove should be controlled well.

3. Embed Neodymium magnets in the groove and seal it by glue.

4. Inspect many aspects of the magnetic chamfer including appearance, geometry size, magnetic force, magnet adhesion, etc.

Maintenance and Safety Precautions in Using Magnetic Steel Chamfer:

1. Place the magnetic steel triangle chamfer strip on the formworks gently so as to avoid embedded Neodymium magnets damaged by the sudden attracting.

2. Check and ensure the geometry and holding force of the magnetic chamfer in good condition, so as to avoid defects for expensive precast concrete wall panels.

3. After use, it should be kept clean and oiled so as to extend service time.

4. The max operating or storage temperature must be below 80℃, because higher temperature may cause the steel magnetic chamfer to reduce or totally lose magnetic force.

5. Wearing gloves to protect operators’ hands is highly recommended. Please keep it far away from electronic instruments and unnecessary ferromagnetic metals. Special caution should be exercised if someone is wearing a pacemaker.
