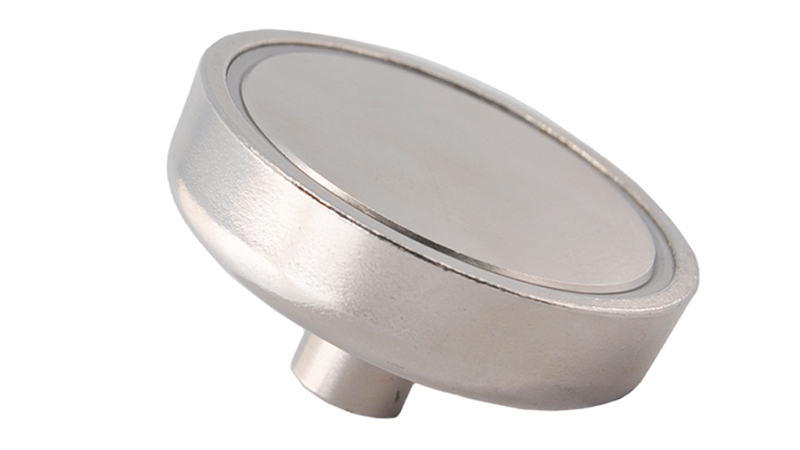

For pot magnet with internal threaded stud, the special threaded bush on the steel case of the Neodymium pot magnet with internal thread enables this threaded pot magnet to be mounted by steel rings, hooks or similar objects with a screw-in bar. It is also named as Neodymium shallow pot magnet with thread hole, Neodymium cup magnet with internal thread, and Neodymium round base magnet with female thread, etc.
Neodymium magnet strength
Mounted by rings or hooks for more use
Idea for organizing tools
More sizes or options available
Why Pot Magnet with Internal Threaded Stud Are Needed:
Nowadays in many fields the thread is necessary to fasten or hold parts to make use of NdFeB magnets. But the thread can not be machined in the Neodymium magnets due to their hard physical properties. It is the Neodymium cup magnet with internal thread that solves this thread fastening problem for NdFeB magnet. Powerful NdFeB magnet is glued inside the steel cup case with internal threaded bushing. The steel cup case can protect the NdFeB magnets from damage. As an alternative, this threaded structure enables this Neodymium pot magnet to work as a base for screwing-in parts with corresponding threaded. The whole magnet system has more powerful magnetic strength than an individual Neodymium magnet. Therefore you don’t need to worry about the objects falling down when you hand them like horizontal banner between two pot magnets. To meet the needs of different holding force, we supply and customize a wide range of magnet strength, thickness and threaded hole sizes, etc for customers’ various needs.
Typical Applications of Pot Magnet with Internal Threaded Stud:
Neodymium threaded pot magnets are ideal for applications where high strength magnets are required. They are often used for heavy duty holding, mounting, and fixing purposes in workstations, classrooms, offices, warehouses and so on.
1. Construction: The internal thread with strong attracting force allows for a fast adjustment to hold metal materials together temporarily.
2. Magnetic clamping: In machining processes like milling, drilling and grinding, the powerful magnetic face can hold workpieces in place securely. Meanwhile, the internal thread on the round base allows for easy but precise attachment to fixtures. It will help increase the machining efficiency very much.
3. Organizing tools: In workshops, garages, or kitchen, there are many types of metal equipments and tools, while the internal threaded Neodymium cup magnets could attach the tools to the workbenches or holders, which will improve the working efficiency and safety both.
Kindly Reminder to Use Pot Magnet with Internal Threaded Stud:
The pot magnet will retain its magnet force permanently unless working temperature or external magnetic field increases. The size, shape and magnet material of the pot magnet can adjust to its usage requirements including pull strength, working temperature, etc.

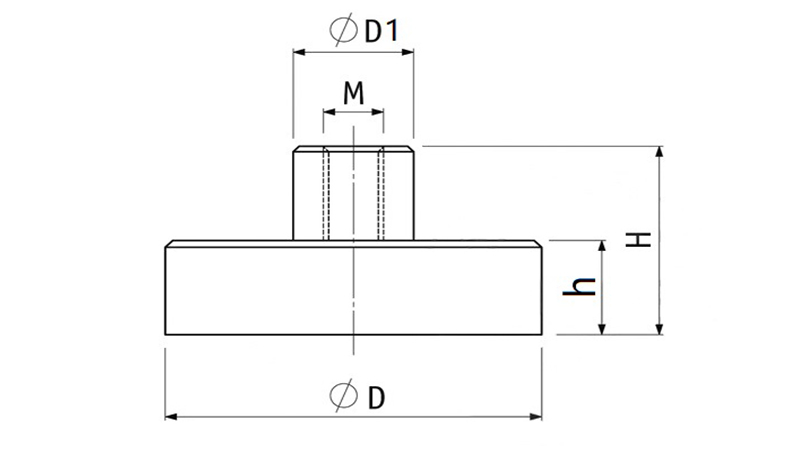

Technical Data for Pot Magnet with Internal Threaded Stud:
| Part Number | D | D1 | M | H | h | Force | Net Weight | Maximum Operating Temperature | ||
| mm | mm | mm | mm | mm | kg | lbs | g | °C | °F | |
| HM-D10 | 10 | 5.5 | 3 | 12 | 5 | 2 | 4 | 2.8 | 80 | 176 |
| HM-D12 | 12 | 6 | 3 | 13 | 5 | 3 | 6 | 4 | 80 | 176 |
| HM-D16 | 16 | 6 | 4 | 13 | 5 | 8 | 17 | 7 | 80 | 176 |
| HM-D20 | 20 | 8 | 4 | 15 | 7 | 15 | 33 | 16 | 80 | 176 |
| HM-D25 | 25 | 10 | 5 | 17 | 8 | 25 | 55 | 25 | 80 | 176 |
| HM-D32 | 32 | 10 | 6 | 18 | 8 | 38 | 83 | 42 | 80 | 176 |
| HM-D36 | 36 | 10 | 8 | 18 | 8 | 43 | 94 | 52 | 80 | 176 |
| HM-D42 | 42 | 12 | 8 | 20 | 9 | 66 | 145 | 78 | 80 | 176 |
| HM-D48 | 48 | 12 | 8 | 24 | 11.5 | 88 | 194 | 140 | 80 | 176 |
| HM-D60 | 60 | 14 | 10 | 30 | 15 | 112 | 246 | 260 | 80 | 176 |
| HM-D75 | 75 | 14 | 10 | 33 | 18 | 162 | 357 | 475 | 80 | 176 |
