Precast Inserted Fixing Magnet

This ferrule locator magnet can be inserted or embedded into a fixture or structure to provide magnetic attachment or fixing capabilities in the applications where a secure and reversible fixing method and rotational movement or alignment are required.

Structure of Precast Inserted Fixing Magnet:

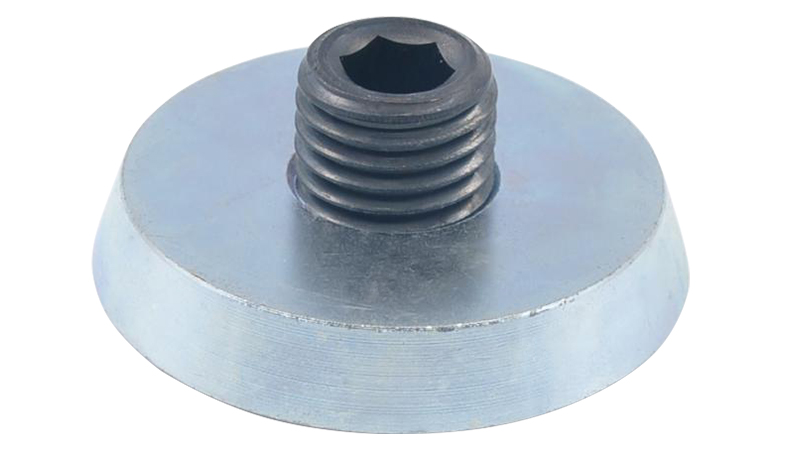

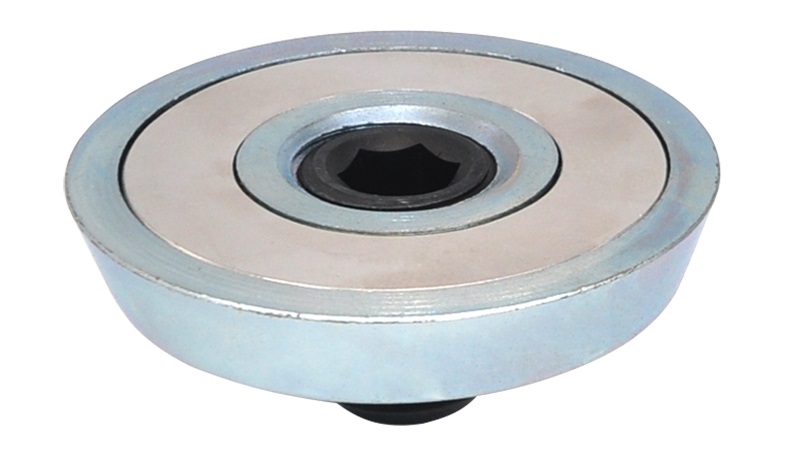

The precast concrete inserted fixing magnet consists of a ring NdFeB (Neodymium-iron-boron) magnet, steel housing, and threaded rod. The steel housing protects Neodymium magnet from outside damage and concentrates the magnetic forces of the encased Neodymium ring magnet to the contacted surface only to generate much higher force than a separate Neodymium magnet. The tapered shape of the steel casing and the interchangeable threaded rod makes the insert magnet easy to release from the hardened concrete through the socket wrench.

General Fact about Precast Inserted Fixing Magnet:

1. Material: high-performance Neodymium magnet + steel housing + steel rod.

2. Coating: Magnet coated with NiCuNi or Zinc + steel housing coated with Zinc or Copper.

3. Option structure: Sometimes it can be produced like the sandwich with a ring NdFeB magnet covered by steel and sealed by black epoxy as a solid structure to protect the magnet surface from chipping and extend the working life of the whole precast inserted fixing magnet.

4. Size and force: Referring to Technical Data, and customized one available

Features of Precast Inserted Fixing Magnet:

1. Enough force: The force is strong enough to fix fixtures or precast parts tightly, because the Neodymium magnet is the most powerful permanent magnetic material currently, and the steel housing concentrates the magnetic lines to one face.

2. Easy to use: The compact size and conical shape of the steel housing with a threaded rod makes it easy to position, insert and remove the inserted fixing magnet without any difficulty.

3. Reusable and durable: The fixing via magnetic force allows the inserted socket magnet to work reusable. Our optimal design and magnet quality makes it work in long term

4. Cost effective: It shortens the labor time and then improves the production efficiency and cost.

Horizon Magnetics Precast Inserted Fixing Magnet Improves Quality of Precast Concrete Products and Operation Safety:

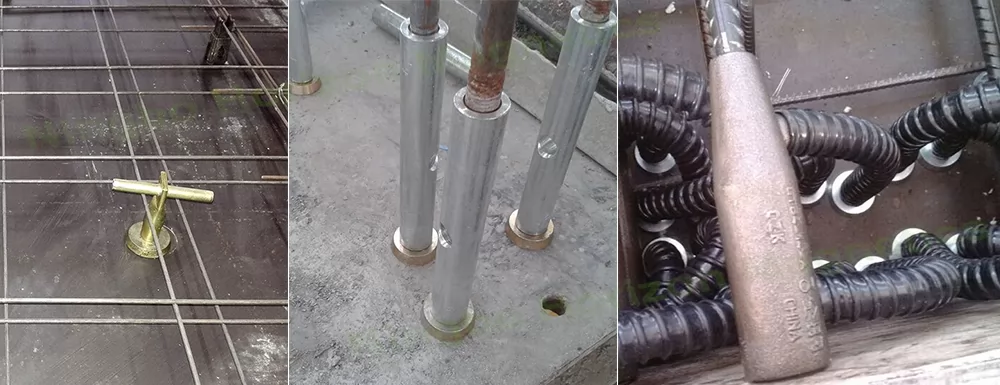

The embedded part is very common in precast concrete products. If the embedded component is not positioned accurately during the concrete casting or vibrating process, the lifting operation will be affected and then the quality of precast concrete elements and operation safety can't be ensured. Our precast inserted socket magnet is specially designed to solve this position problem. Precast inserted fixing magnets come in different shapes, sizes, and configurations to suit specific application needs. They may feature various mounting options such as countersunk holes, threaded inserts, or adhesive backing for easy installation onto different surfaces or structures. Because of the strong adhesive force from NdFeB (Neodymium-iron-boron) magnet, it is powerful and convenient enough to fasten embedded parts firmly without slipping. Simple solution makes work more efficient and cost effective.

Why Customers Buy Horizon Magnetics Precast Inserted Fixing Magnet:

1. Professional: We have knowledge and over 20-year experience in both Neodymium magnets and application in the precast concrete industry, and quite understand their requirement. Expertise in design and extensive in-house production capabilities enables us to realize high quality precast concrete inserted socket fixing magnets for customers conveniently.

2. Neodymium magnet: We originate from and still in Neodymium magnet production. We have unbeatable know-how in the most important component, Neodymium magnet to ensure precast insert magnet quality

3. Quality first: We are confident in our precast inserted fixing magnets quality and accept terms of payment like 100% T/T after customers’ receipt of our products.

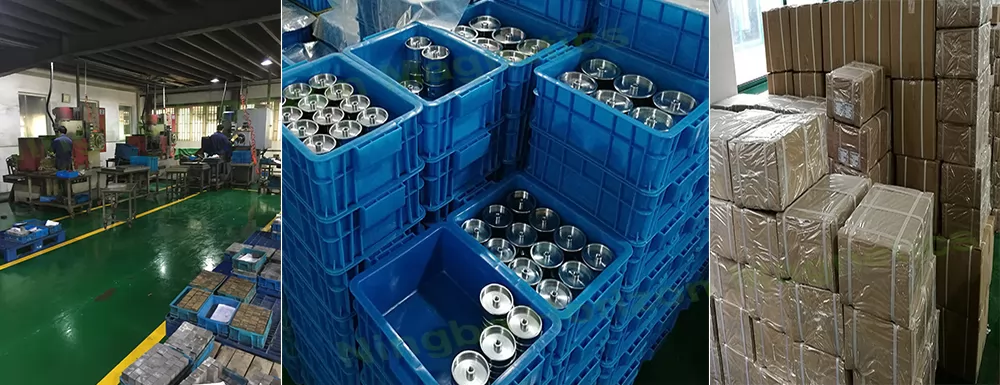

4. Fast delivery: Standard models of precast inserted socket fixing magnets in stock and available for immediately delivery.

5. One-stop: We produce complete precast concrete magnets including shuttering magnets, magnetic chamfers and custom-made magnetic products to meet customers’ one-stop purchase.

6. Affordable: Our expertise in both Neodymium magnet and magnetic assemblies, and in-house production for a large quantity makes precast inserted fixing magnets at competitive price.

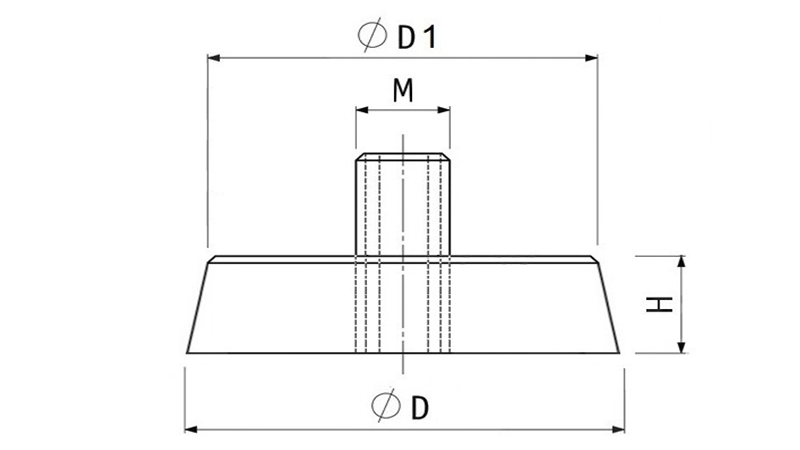

Technical Data for Precast Inserted Fixing Magnet:

Maintenance and Safety Precautions in Using Precast Inserted Fixing Magnet:

1. Danger! Keep the precast inserted magnet far away from someone wearing a pacemaker, unnecessary ferromagnetic metals and electronic instruments.

2. Don’t hit the inserted fixing magnet violently with hard tools so as to avoid the insert magnet damaged.

3. Keep the touching surface of the precast concrete inserted fixing magnet clean and smooth. Avoid grout covering surface of the encased Neodymium magnet to keep magnetic force.

4. Operate or store the insert magnet below 80℃.
