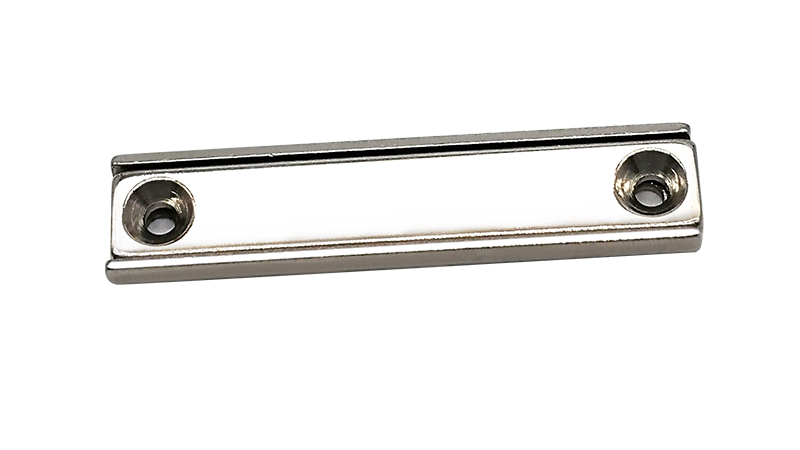

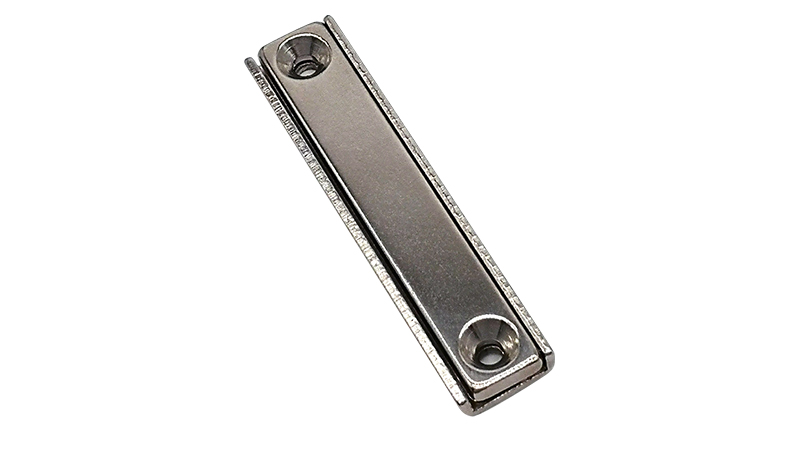

Neodymium rectangular pot magnet, Neodymium channel magnet, or Neodymium rectangular channel mounting magnet utilizes a strong Neodymium block magnet with holes encased inside a steel channel to meet a versatile application in holding, mounting, securing or positioning.
Powerful Neodymium magnet
Rectangular channel shape
Fasten firmly with a countersunk screw
Hold license plates, door latches, etc.
How to Produce Neodymium Rectangular Pot Magnet:
According to detailed requirement like shape, size, holding force, etc, we calculate and find out the steel channel dimension, Neodymium magnet grade and matching size. Sometimes, N35 grade of Neodymium magnet cannot reach enough holding force to meet requirements, and then higher grade must be supplied instead. The shape, size and position of the countersunk holes must be controlled strictly during machining and plating the steel house. Before assembling the rectangular pot magnets, the quality and holes for both magnets and steel u-channels must be strictly inspected. In the assembling and final inspection processes, the matching position of countersunk holes between Neodymium magnets and steel channels must be checked too and verified via an M3 screw.
Key Data for Neodymium Rectangular Pot Magnet:
1. Material: high performance block Neodymium magnet + A3 steel + glue
2. Coating: normally three layers of Ni+Cu+Ni coating to enhance corrosion resistance, but customized coating available upon request
3. Size and force: referring to size specification, and customized Neodymium rectangular mounting magnets available upon request
Why to Use Neodymium Rectangular Pot Magnet:
1. It’s easy to hold ferromagnetic hardware, such as wrenches, hammers, screwdrivers, knives, kitchen tools, clamps, etc on the surface of long channel magnet. One long rectangular magnet can be used to hold several items rather than bolting or screwing several round shaped pot magnets.
2. The brittle Neodymium magnet is protected by the u shape steel housing from physical damage outside, which enables the rectangular pot magnet to work over and over.
3. The steel channel redirects one polarity of powerful Neodymium magnet to the other needed contact side to increase stronger holding force.
4. There are many options of size and holding force, and customized options supplied to fulfill your diverse requirements.
How to Use Neodymium Rectangular Pot Magnet:
Directly mount the steel face on walls or required places regardless of the material by screwing or bolting through the holes in the Neodymium rectangular pot magnet firmly. And then you may attach your metal objects to the rectangular pot magnet directly, conveniently, tightly and organized.
Where Neodymium Rectangular Pot Magnet Needed:
Because of its convenience in use, its varying shapes and sizes makes the rectangular pot magnet the ideal took for attaching, holding or fixing applications, like holding sign and banners, mounting license plates, door latches, cables supports, etc. It is widely used in many fields, such as garages, workstations, butcher shops, kitchens, even trucks inside.
Why to Purchase Horizon Magnetics Neodymium Rectangular Pot Magnet:

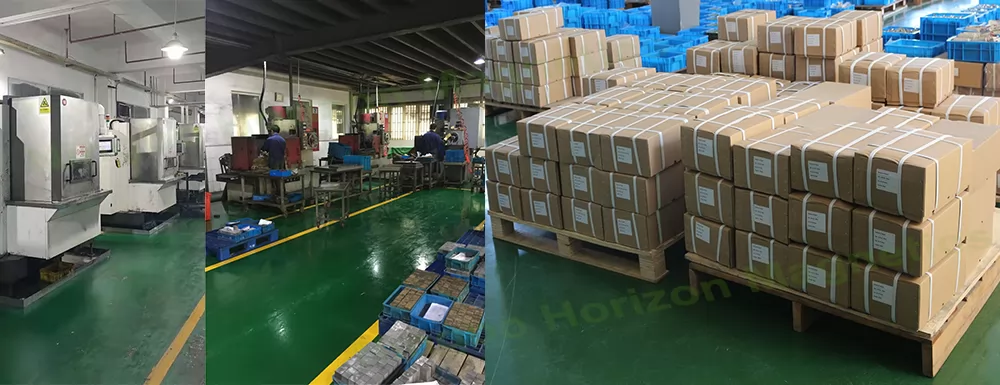

1. High quality: As a China leading Neodymium rectangular pot magnet manufacturer, our NdFeB magnet, especially quality of countersunk holes, the most important component is produced by our own factory, which enables us to make magnet quality under control.
2. Fast delivery: Enough Neodymium channel magnet inventory and in-house fabricating capacity enables a just-in-time delivery.
3. More options: More standard options are available. Moreover, our in-house production and fabrication enables customized options of various magnetic systems for customers conveniently. We can meet simple one-stop purchase.

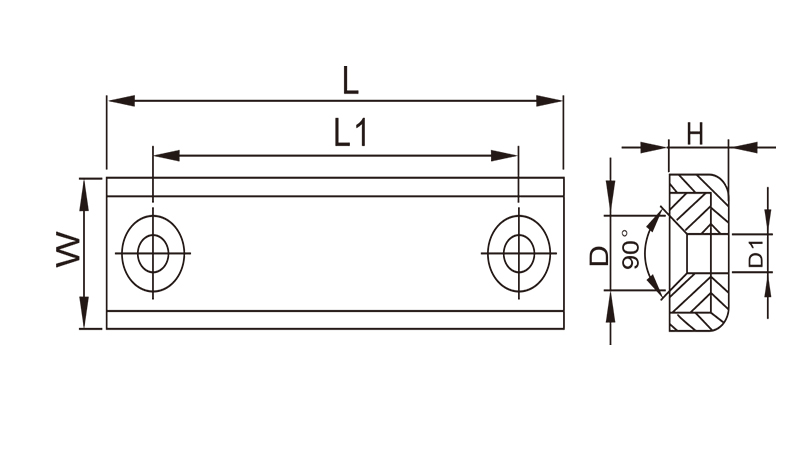

Technical Data for Neodymium Rectangular Pot Magnet:
| Part Number | L | L1 | W | H | D | D1 | Force | Net Weight | Maximum Operating Temperature | ||
| mm | mm | mm | mm | mm | mm | kg | lbs | g | °C | °F | |
| HM-CM-040 | 40 | 30 | 13.5 | 5 | 6.5 | 3.3 | 17 | 37 | 18.4 | 80 | 176 |
| HM-CM-050 | 50 | 40 | 13.5 | 5 | 6.5 | 3.3 | 27 | 59 | 23.2 | 80 | 176 |
| HM-CM-060 | 60 | 50 | 13.5 | 5 | 6.5 | 3.3 | 30 | 66 | 27.9 | 80 | 176 |
| HM-CM-070 | 70 | 60 | 13.5 | 5 | 6.5 | 3.3 | 31 | 68 | 31.2 | 80 | 176 |
| HM-CM-080 | 80 | 70 | 13.5 | 5 | 6.5 | 3.3 | 33 | 72 | 37.8 | 80 | 176 |
| HM-CM-090 | 90 | 80 | 13.5 | 5 | 6.5 | 3.3 | 35 | 77 | 41.2 | 80 | 176 |
| HM-CM-100 | 100 | 90 | 13.5 | 5 | 6.5 | 3.3 | 36 | 79 | 46.9 | 80 | 176 |
| HM-CM-110 | 110 | 100 | 13.5 | 5 | 6.5 | 3.3 | 38 | 83 | 49.2 | 80 | 176 |
| HM-CM-120 | 120 | 110 | 13.5 | 5 | 6.5 | 3.3 | 40 | 88 | 56.5 | 80 | 176 |
