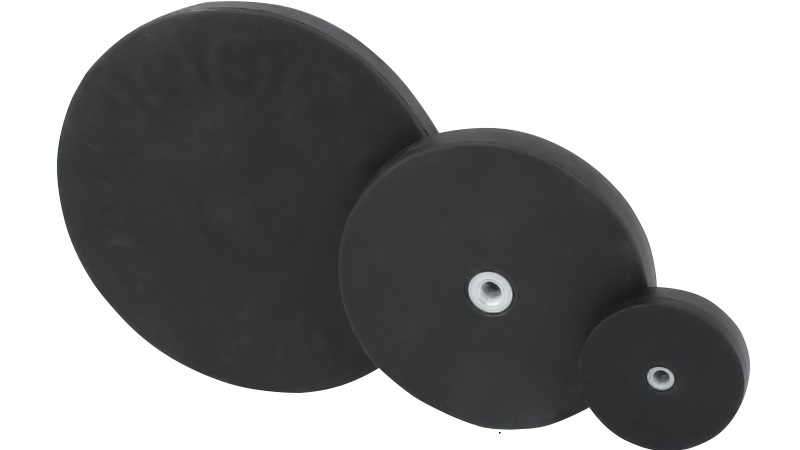

Rubber coated magnet with female thread has a metric internal screw thread, which can be fastened with objects through threaded bolt to minimize the scratches to the contacted delicate surface. It is also called rubber coated pot magnet with female thread, or NdFeB rubber coated magnet with internal thread.
Strong durability
High safety
Easy connection
Flexible customization
Rubber coated magnet with female thread has a metric internal screw thread, which can be fastened with objects through threaded bolt to minimize the scratches to the contacted delicate surface. It is also called rubber coated pot magnet with female thread, or NdFeB rubber coated magnet with internal thread.
Advantages of Rubber Coated Magnet with Female Thread:
1. Strong durability: Due to the protection of rubber coating, rubber coated magnets with female thread have high durability and can maintain stable performance for a long time.
2. High safety: The rubber coating also increases the safety of the mounting magnet, so that it will not cause scratches or damage to the expensive or delicate contacted surface during use.
3. Easy connection: The design of the internal threaded hole allows this rubber coated pot magnet universal to mount objects with male threads, without the need for additional drilling, adhesive, fixing devices or tools.
4. Flexible customization: Customers can customize according to their needs, including different sizes, shapes, and magnetic properties, to meet the needs of various application scenarios.
Why to Buy Rubber Coated Magnet with Female Thread from Horizon Magnetics:
1. The most important component of rubber coated magnets, Neodymium magnet is produced by us, and its quality and cost are under control.
2. Many types of magnet assemblies are in stock and available for immediately delivery.
3. Custom-made solutions are available upon request.
4. Comprehensive magnet and magnetic products, and in-house fabricating capability meet one-stop shopping need of magnetic products.
Technical Data for Rubber Coated Magnet with Female Thread:
| Part Number | D | M | H | Force | Net Weight | Maximum Operating Temperature | ||
| mm | mm | mm | kg | lbs | g | °C | °F | |
| HM-G22 | 22 | 4 | 6 | 5 | 11 | 12 | 80 | 176 |
| HM-G34 | 34 | 4 | 8 | 7.5 | 16.5 | 22 | 80 | 176 |
| HM-G43 | 43 | 4 | 6 | 8.5 | 18.5 | 29 | 80 | 176 |
| HM-G66 | 66 | 6 | 8.5 | 18.5 | 40 | 100 | 80 | 176 |
| HM-G88 | 88 | 8 | 8.5 | 43 | 95 | 186 | 80 | 176 |
