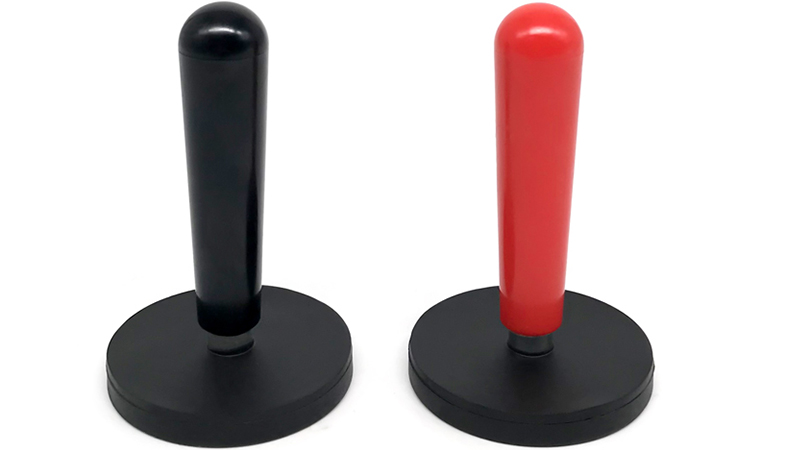

Rubber coated magnets with handle have Santoprene rubber that can protect fine surface areas. It has M4 or M6 internal threads and a 64mm long screw in the handle. For various standard models, the rare earth magnets weigh 20 to 220 grams and have a holding force of 3 to 42 kilograms.
Regularly replace signs or labels
Color-changing and film pasting
Move and clean the glass surface
Color management
Purpose of Rubber Coated Magnet with Handle:
This rubber coated pot magnet with handle contains several strong Neodymium disk magnets arranged to achieve maximum holding capacity, while the handle attachment makes the magnetic bond more prone to breakage when removal is required. The entire base of the contact area is covered with soft Santoprene rubber, which can prevent scratches and damage to the painted surface, while giving the excellent corrosion resistance and the ability to withstand outdoor weather conditions. When no longer needed, the handle is easy to unscrew. Therefore it is very suitable for applications that require magnetic connection of items, followed by regular disassembly and repositioning in following fields:
1. It is used in magnetic whiteboards and when it is necessary to regularly replace signs or labels on products or storage areas.

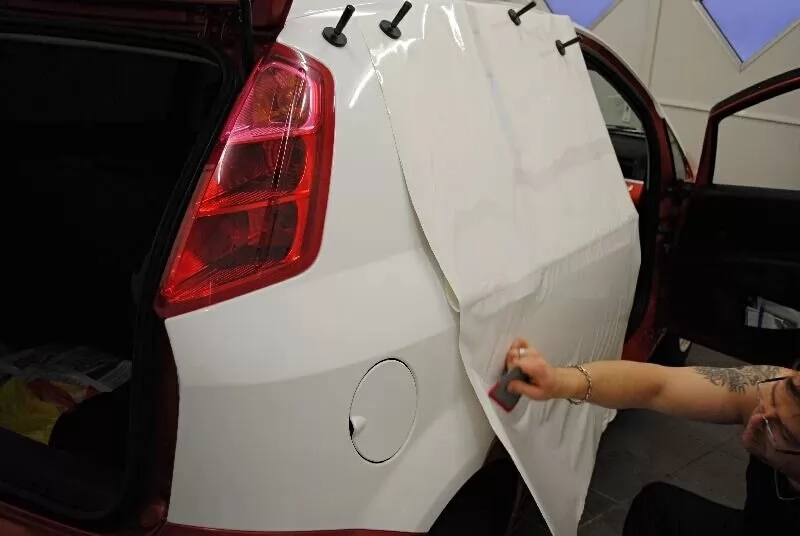

2. This rubber coated Neodymium pot magnets with a handle are easy to attach to the steel surfaces and remove by using the handle for leverage. Holding and assembling metal components can be achieved without scratching the paintwork or damaging recently applied powder coatings. Color-changing and film pasting vehicle panel shops, vehicle signwriters and metal fabricators can use the rubber coated magnets with handle to make their workplace safer and more efficient without hurting painted steel surfaces or framework.
3. Two rubber coated mounting magnets can easily bond with each other through a glass windowpane without damaging the glass. Moreover, the rubber coated pot magnets are easy to move and clean the glass surface by controlling the handle conveniently.
4. As a leading magnet manufacturer in China, we can customize various sizes and colors of rubber coated pot magnets with handle to meet the color management requirements.
Technical Data for Rubber Coated Magnet with Handle:
| Part Number | D | M | H | h | Force | Net Weight | Maximum Operating Temperature | ||
| mm | mm | mm | mm | kg | lbs | g | °C | °F | |
| HM-IP22 | 22 | 4 | 69.5 | 6 | 3 | 6.5 | 21 | 80 | 176 |
| HM-IP43 | 43 | 4 | 70 | 6 | 8.5 | 18.5 | 43 | 80 | 176 |
| HM-IP66 | 66 | 6 | 72.2 | 8 | 18 | 40 | 134 | 80 | 176 |
| HM-IP88 | 88 | 6 | 73.8 | 8.5 | 42 | 92 | 213 | 80 | 176 |
