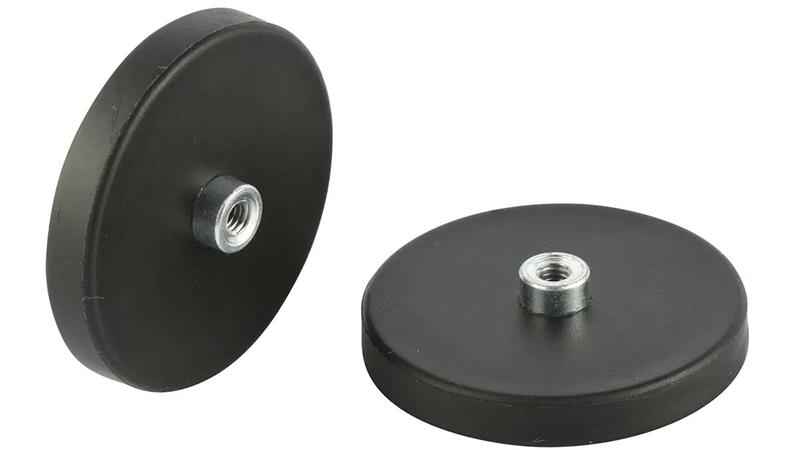

Rubber coated magnets with screwed bush are based on high-performance magnets such as Neodymium Iron Boron magnets, which are covered with a layer of rubber material on their surface through special processes, and the screwed bush is machined on one end of the pot magnet. This design not only retains the strong holding force of the magnet, but also increases the durability and installation convenience of the rubber coated pot magnet.
Strong integration
High durability
Good security
Features of Rubber Coated Magnet with Screwed Bush:
1. Strong integration: The rubber coating covers the Neodymium magnets and the steel shell and is not easily detached. The screwed bush increases the installation convenience and firmness of the rubber coated magnet.
2. High durability: The rubber coating layer improves the wear resistance, corrosion resistance, and impact resistance of the product. Neodymium magnets have high magnetic energy product, which can maintain stable magnetic force for a long time.
3. Good security: The rubber coating can prevent the whole magnet system from producing noise or scratches when it comes into direct contact with metal or other magnetic materials. The screwed bush makes the rubber coated magnet installation more secure and reduces the risk of detachment or loosening.
Typical Applications of Rubber Coated Magnet with Screwed Bush:
Due to special advantages over the conventional Neodymium pot magnet with internal threaded stud ensuring a dense shallow magnetic field on the holding surface, the rubber coated magnet with screwed bush is mainly used in the industrial area especially for the wind, oil and gas industry, where corrosion is easy to happen. Moreover, it is ideal for excellent holding onto lacquered, polished chrome-plated or painted metal surfaces with scratch-free to mount car roof lightings, advertizing light boxes, wedding car flowers, cameras, false ceiling clamps, cupboard and gate clamps, signs and banners, etc.
Precautions for Using Rubber Coated Magnet with Screwed Bush:
1. Usage environment: Avoid using Neodymium rubber coated magnets in high temperature to avoid affecting the performance and lifespan of the product.
2. Installation requirements: During installation, please ensure that the screwed bush matches the thread on the installation surface and use tools such as torque wrenches to tighten it appropriately.
3. Avoid using excessive or insufficient force during installation to prevent damage to the screwed bush or the whole rubber coated magnet.
Technical Data for Rubber Coated Magnet with Screwed Bush:
| Part Number | D | D1 | M | H | h | Force | Net Weight | Maximum Operating Temperature | ||
| mm | mm | mm | mm | mm | kg | lbs | g | °C | °F | |
| HM-GT22 | 22 | 8 | 4 | 11.5 | 6 | 3 | 6.5 | 12 | 80 | 176 |
| HM-GT43 | 43 | 8 | 4 | 12 | 6 | 8.5 | 18.5 | 33 | 80 | 176 |
| HM-GT66 | 66 | 10 | 6 | 14.2 | 8 | 18 | 40 | 104 | 80 | 176 |
| HM-GT88 | 88 | 12 | 6 | 15.8 | 8.5 | 42 | 92 | 200 | 80 | 176 |
Precast shuttering magnet or formwork magnet is an innovative magnetic shuttering solution for precast concrete formworks! This siderail shuttering magnet makes it convenient, economic and efficient to fix the side forms and openings firmly onto steel tables and beds during the casting and vibration processes. As a China leading shuttering magnet manufacturer & supplier, Horizon Magnetics keep developing and manufacturing various shuttering magnets to help worldwide precast concrete industry solve problems caused by the traditional formwork fastening methods.
Magnets for PMSM (permanent magnet synchronous motors), particularly sintered Neodymium magnets (NdFeB), are integral components that determine the performance, efficiency, and reliability of PMSM motors. Neodymium magnets are essential components in modern electric motors, providing the necessary magnetic fields for efficient and powerful operation.
Samarium Cobalt ring magnet is the cylindrical shaped SmCo magnets with a center hole through the flat surfaces of magnets. The SmCo ring magnets are mainly used in sensors, magnetrons, high performance motors for example dental motors, microwave communication TWT (travelling wave tube), etc.
Neodymium block magnets are usually square and rectangular block shaped, which are the most common shape of Neodymium magnet. Usually we call them rare earth bar magnets, magnetic blocks, Neodymium bar magnets or rectangular Neodymium magnets. The strong block magnets are always used in industrial markets and small blocks may be used as craft magnets.
